ZRH Series

Sensor Wired Tool Controller Workstation ZRH-IW101

Product Description Technical Parameters
Your Current Location:Front Page > Product Center
Product Description
    Windows 10 system, Intel Celeron J4125 9th generation processor, 8G RAM, 128G large storage space
    The dual-fan flow heat dissipation design ensures that the device maintains a stable temperature during long-term operation
    Equipped with dual-antenna WIFI network card, capable of data transmission and interaction with MES
    Built-in voice broadcast function
    Provides a powerful and intuitive human-computer interaction interface to facilitate user operation and monitoring, ensuring that users have different operating permissions
    Users can customize permission settings according to their needs
    Supports no less than 32 sets of tightening program presets

Technical Parameters

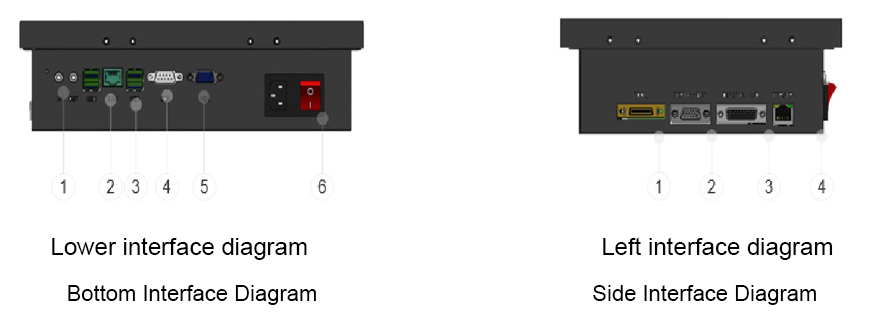

Bottom side

①

External audio interface: used to connect speakers and microphones

②

LAN interface: used to connect to the Internet

③

USB port: used to connect USB devices

④

COM485 interface: standard 485COM port

⑤

VGA interface: used to expand the screen. There are currently two types of interfaces.Please refer to the actual situation

⑥

Main power interface, used to connect to 220V AC power supply



left part Left side

①

Tool body interface: connected to the tool body via tool cable

②

Communication bus interface: used for data exchange ( control of fastening equipment andRead results and data )

③

IO interface: used to interact with other devices ( control the start and stop, screw group, custom input, etc. )

④

TCP/IP communication interface: uses custom communication protocol for data Interaction (controlling fastening equipment and reading results and data )
