ZRH Series

Sensor Wired Tool Controller Integrated controller ZRH-IC121

Product Description Technical Parameters
Your Current Location:Front Page > Product Center
Product Description
    7- inch high-resolution capacitive touch screen
    Lightweight design, easier to install and maintain
    Standardized user interface, strong hierarchy, better user experience
    Digital I/O , RS485/422 interface, network port and Type-C interface support digital I/O , Modbus RTU , TCP/IP and OP protocols
    Support local export and MES system upload
    Can be connected to a 1D or 2D barcode scanner
Technical Parameters

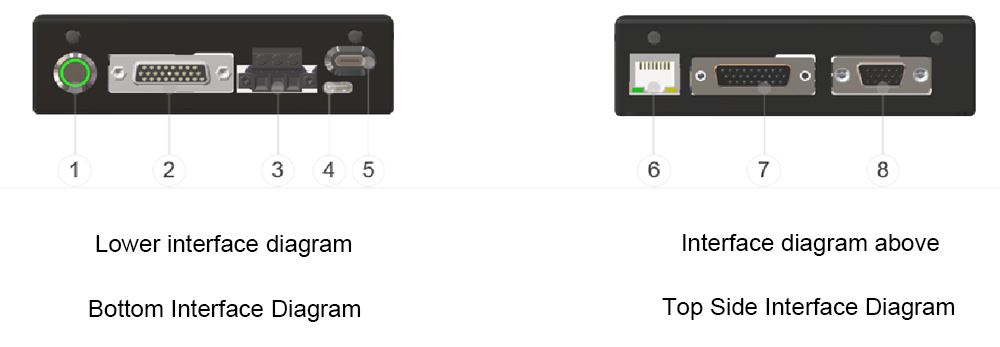

Bottom side
 ① Power switch: used to control the power on and off of the controller
② Screwdriver body interface: used to connect to the smart electric screwdriver body
③ Power interface: used to power the central program controller (Please use the controller's own power supply)
④ Debug interface 1: used to update the program, not open to external development
⑤ Debug interface 2: used to read data
Top side
 ⑥ TCP/IP communication interface: uses custom communication protocols for data exchange (controls tightening equipment and reads results and data)
⑦ IO interface: used to interact with other devices (control the start and stop of fastening equipment, screw group, custom input, etc.)
⑧ Communication bus interface: used for data exchange (controlling fastening equipment and reading results and data)
